Standard Battery System For 80V 412AH Forklift
Technical Parameters:
| Battery Type | LiFePo4 |
| Battery system group way | 2P25S（3 2P6S+1 2P7S standard modules in series） |
| Rated voltage of battery system（V) | 80 |
| Rated capacity of battery system（Ah) | 412 |
| Total battery power（KWh) | 33 |
| Total weight of battery system(Kg) | 295±10Kg |
| Battery system voltage range（V) | 62.5-91.25 |
| Maximum continuous discharge current（A） | 250A |
| Maximum continuous charging current（A） | 200A |
| Recommended SOC working range | 30-90% |
| Battery system protection level | IP65 |
| Battery system cycle life | 2000 times@25°C |

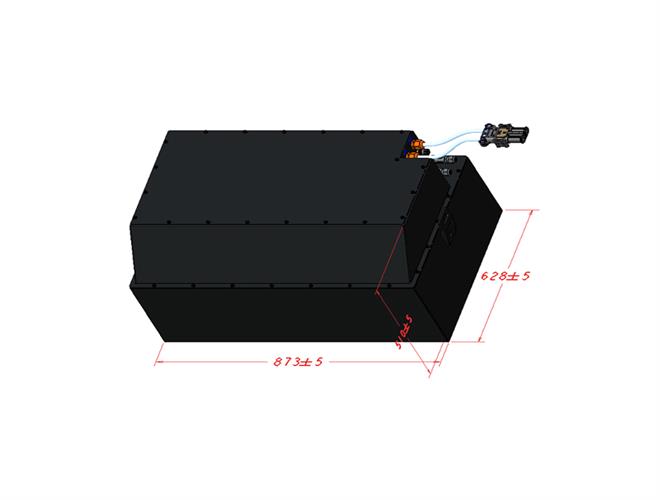

| External dimensions of battery system（mm） | (873±5）*（628±5）*（510±5） |
| range of working temperature | Charge -30~55℃(With heating），Discharge -30~60℃ |
Battery system charging and discharging with communication; With charging and discharging heating function; The charging terminal uses the national standard charging base; The discharge terminal uses REMA320 female headband for communication and has remote monitoring function. (Customized).
Voltai is a high-tech enterprise, committed to the research and development, production and marketing of lithium ion batteries, lithium battery module PACK and lithium energy storage equipment. More details,please feel free to contact us directly~
