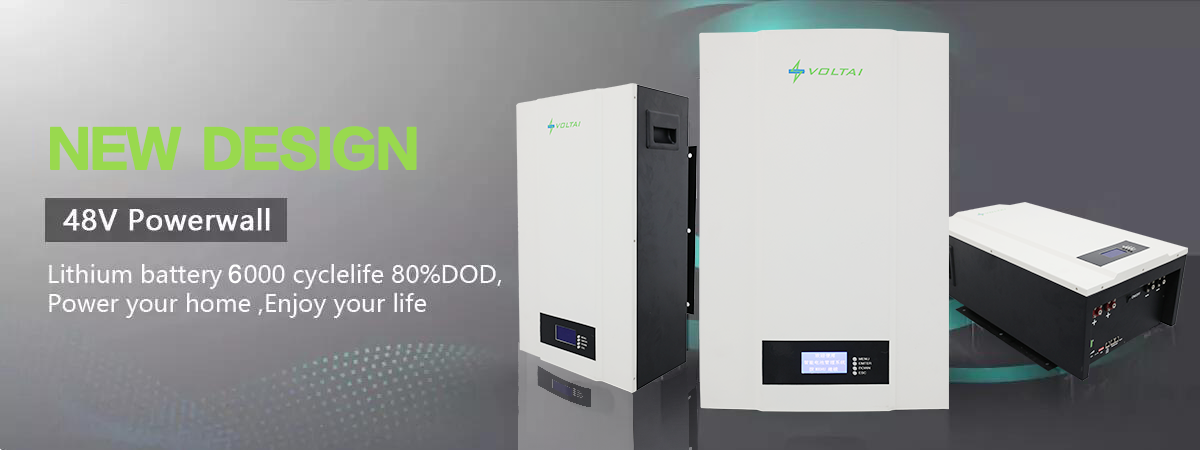

51.2V Powerwall Lithium Ion Battery Energy Storage

48V 200Ah(10Kwh) Deep Cycle LiFePO4 Battery with BMS 6000 times deep cycle charge and discharge. Iron phosphate-lithium power battery. Higher energy density, smaller volumn for household. Support connected in parallel mode for expansion. Photovoltaic system: This battery pack is designed for household photovoltaic systems.

Model: VL-BOX1
Product specification: 51.2V200Ah
Battery Voltage: 51.2V
Battery Capacity: 200Ah
Cycle Life: >6000times
Communication interface: RS485、RS232、CAN(Optional)
Communication: SMA, Growatt, Voltronic Power, Solis, Solax, Sungrow, Sofar, Goodwe etc
Warranty:5 years for machinery warranty

Send email to us Video Download

Product Detail

Product Tags

Voltai’ Lifepo4 battery pack is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS. BMS with improted chips and MOS,with balancing function and dual protection, has a wide range of performance and application advantages compared with conventional battery.

White and Black matte coler, Brand new unique design, various size vaild, easy installation, panel customization service, support for parallel expansion for large capacity applications. Customize BMS with various protection and communication functions ensures the reliable battery performance and remote real-time monitoring of battery data.

Product Application:

Product Application

Product Features:

◆High-quality 51.2V LiFePO4 powerwall, safety, deep cycle and long lifespan

◆100Ah and 200Ah powerwall, support up to 15 modules in parallel

◆LCD monitor the energy storage power data and operating status

◆Air cooling to improve the reliability of the product

◆External main switch to reduce product power consumption and improve safety

◆Wall brackets, which can meet the installation and use of different place

◆BMS bulit inside, over-voltage, over-load, over-temperature protection, atc

◆Compatible, can be connected to different types of loads within the voltage range

Product Parameter:

Product Model	51.2V 100AH	51.2V 200AH
Rated capacity	5120WH	10240WH
Nominal Voltage	51.2V	51.2V
Nominal Capacity	100AH	200AH
Cell Type	LIFEPO4	LIFEPO4
Standard Charging Voltage	58.4V	58.4V
Max Charge Current	100AH	200AH
Discharge Cut-off Voltage	40V	40V
Max Discharge Current	100AH	200AH
Parallel Function	8pcs	8pcs
Depth of Discharge	>85%	>85%
Cycle Life	>6000cycles (0.5C)	>6000cycles (0.5C)
Charging Temperature Range	0℃~50℃	0℃~50℃
Discharging Temperate Range	-20℃~60℃	-20℃~60℃
Color	(White and Black)	(White and Black)
Dimension	L630W400H217.5(MM)	L685W400H287(MM)
Weight	Around 45KG	Around 86KG
Installation Method	Wall Mounted	Wall Mounted
Communication Interface	CAN, RS485	CAN, RS485
Warranty	5 years	5 years
Package	Wooden Case	Wooden Case
