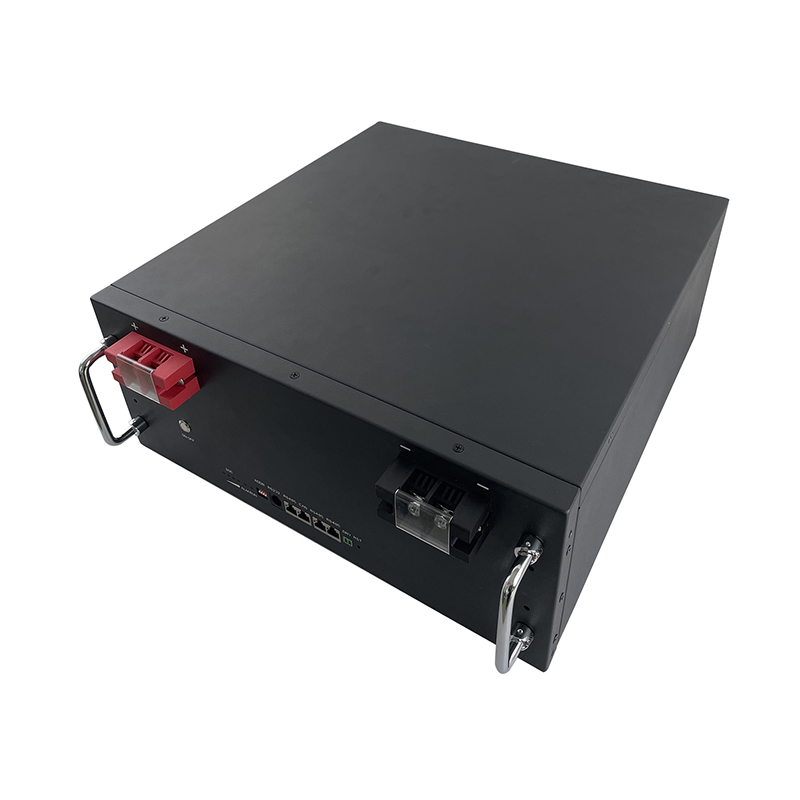

51.2V 200Ah ESS- 10240 Lithium LiFePO4 Battery Module

Model：ESS- 10240

Nominal voltage：51.2V

Nominal capacity @ 25°C：200Ah

Nominal eapacity @ 0°C：160Ah

Nominal energy @ 25°C：10240Wh

Dimensions (LxWxH) mm：483x 440x 267

CYCLE LIFE (eapacity ≥ 80% of nominal)：100% DOD，4,000 cycles

Operating temperature：Discharge: -20℃ to +50℃, Charge: +5℃ to +50℃

Send email to us Video Download

Product Detail

Product Tags

Best Integrated Solar System, affordable solution for backup power, our 51.2V 200Ah ESS- 10240 Lithium LiFePO4 Battery Module, an integration kit to connect to your breaker panel, and optional expansion batteries for even more power.

Products Details:

48v 100ah

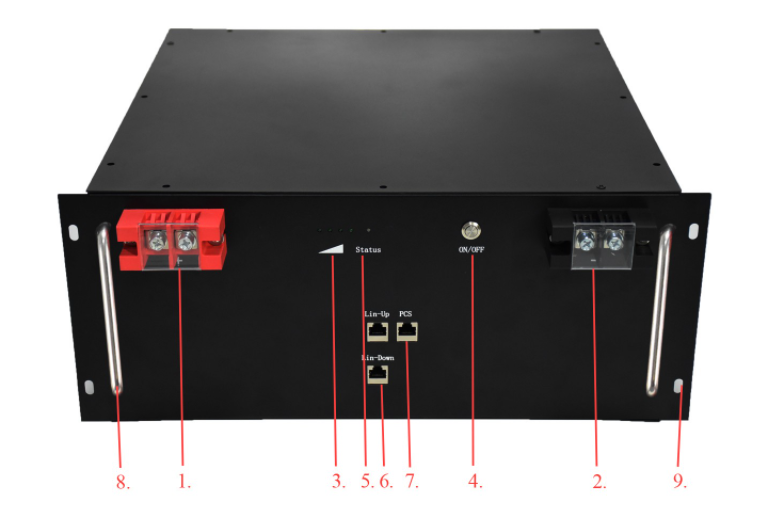

1. Positive terminal 2.Negative terminal 3.Power level indicator

4.ON/OFF button 5.Working indicator 6.Parallel port

7. CAN communication port 8.Carrying handle 9.Install hole

Technical Parameters：


Battery specification
Model	ESS-2560	ESS-5120	ESS- 10240
VOLTAGE AND CAPACITY	5 1.2V/50Ah	51.2V/100Ah	5 1.2V/200Ah
Nominal voltage	51.2V	51.2V	51.2V
Nominal capacity @ 25°C	50Ah	100Ah	200Ah
Nominal eapacity @ 0°C	40Ah	80Ah	160Ah
Nominal ceapacity @ -20°C	25Ah	50Ah	100Ah
Nominal energy @ 25°C	2560Wh	5120Wh	10240Wh
*Discharge current≤IC
CYCLE LIFE (eapacity ≥ 80% of nominal)
100% DOD	4,000 cycles
80% DOD	6,000 cyeles
50% DOD	10.000 cyeles
DISCHARGE
Maximurm continuous discharge current	50A	100A	100A
Recommended continuous discharge current	S50A	≤100A	s100A
End of discharge voltage	40V	40V	40V
OPERATING CONDITIONS
Operating temperature	Discharge: -20℃ to +50℃, Charge: +5℃ to +50℃
Storage temperature	-25℃ to 45℃
Humidity (non condensing)	Max.95%
Proteetion class	IP 22
CHARGE
Charge voltage	58.4V
Maximum charge current	50A	100A	100A
Recommended charge current	≤50A	≤100A	≤100A
OTHER
Capable Parallel Quantity	≤15 Modules
Communication Port	RS232 RS485 CAN
BMS Conneetor
Dimensions (LxWxH) mm	483x 440x 134	483 x 440x 178	483x 440x 267
Weight	28kg	45kg	85kg
*When fully charged
