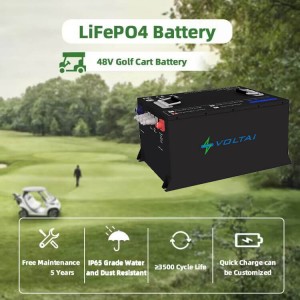

48V 72V 105Ah 160Ah Lifepo4 Battery Manufacturer For Golf Cart Utility Vehicle
| Item | Parameter | Remarks |
| Cells Qty | 16S2P | |
| Cell Material | LiFePO4 | |
| Nominal Voltage | 48.0V-512VDC | Real51.2VDC |
| Nominal Capacity | 100-105.0Ah | 0.5C Standard chargeand discharge |
| Standard Charge Current | 25.0A@25℃ | |
| Max Charge Current | 100.0A | |
| Voltage at end of Charge | 46.5V | |
| Voltage at end of Discharge | 40.5V | |
| Standard Discharge Current | 100.0A | |
| Max Continuous Discharge Current | 350.0A@30s | |
| AC Internal Resistance | ≤30mΩ | Between the positiveand negative poles of the discharge port |
| SOC Recommended Application Scope | 5%~95% | |
| Pack Size（L*W*H） | 500*343*256.50mm | Include fixed fleet |
| Net Weight | 39.9kg | without package |
| Shell Materia | Plastic sprayed metal black | |
| Waterproof IP Level | IP67 | |
| Charging Safety Temperature | -5-55℃ | |
| Discharging Safety Temperature | -20-55℃ | |
| Cycle Life | 5000cycles @DOD80% | |
| Storage Temperature | 20±5℃ | -20~25℃12month |
| -20~40℃3month | ||
| -20~60℃1month | ||
| Storage Humidity | 65±20%RH | Recommendation |

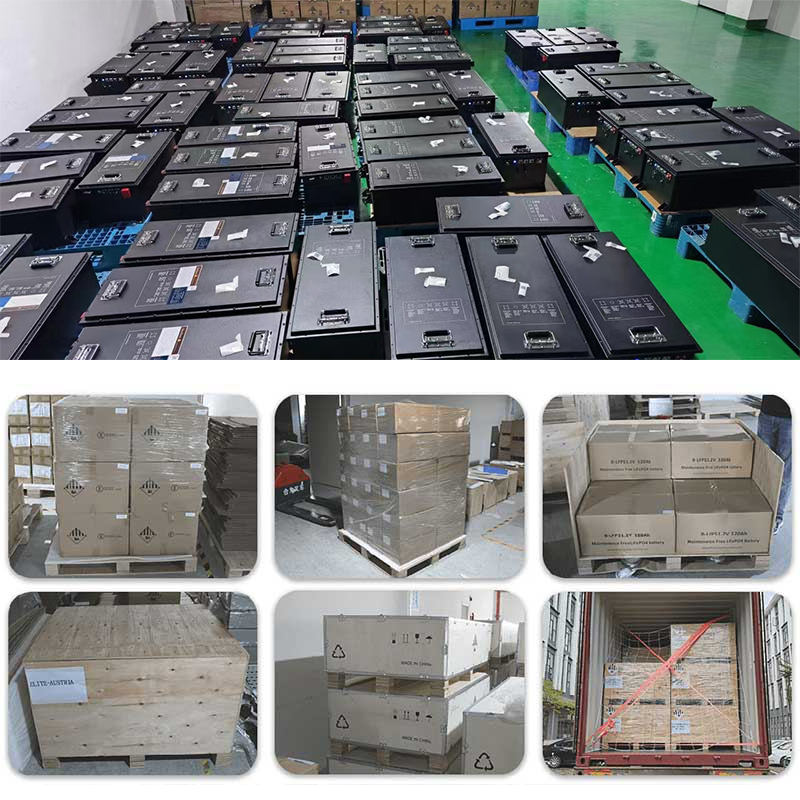

Factory
Certification
Package
