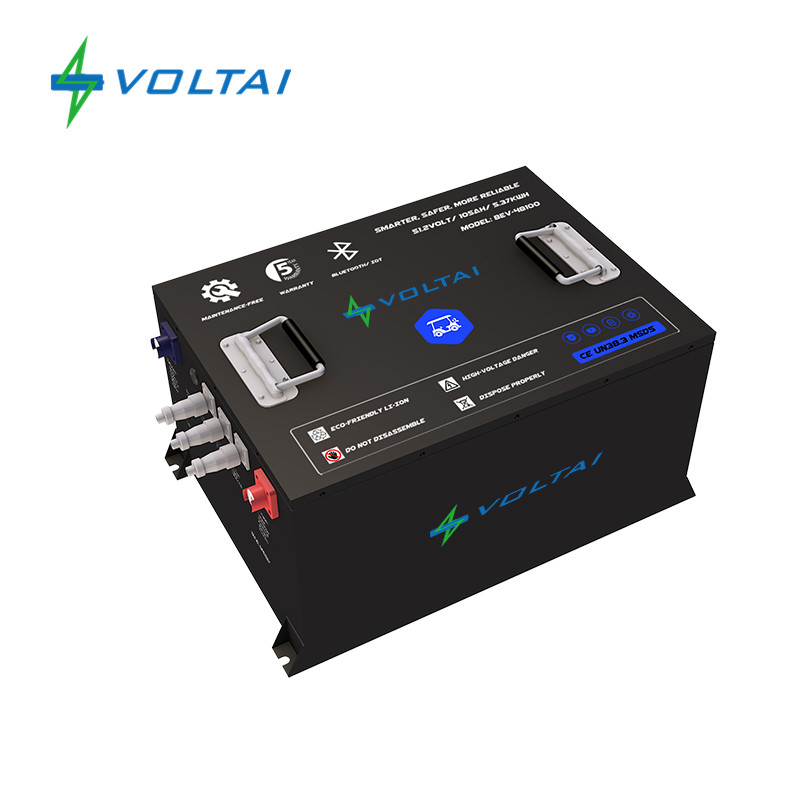

48V 70v 105amp Lifepo4 Battery For Club Cart

The power golf cart battery lithium battery system developed by the company is mainly composed of the lithium battery pack and the battery management system (BMS). It is also equipped with the 3.5-inch color monitoring LED touch screen and an Internet of Things (IoT) communication module. The lithium battery can be monitored and managed through PC and mobile phone clients.

Send email to us Video Download

Product Detail

Product Tags

海报(缩)

Item	Parameter	Remarks
Cells Qty	23S2P
Cell Material	LiFePO4
Nominal Voltage	72V DC	Real51.2VDC
Nominal Capacity	100-105.0Ah	0.5C Standard chargeand discharge
Standard Charge Current	25.0A@25℃
Max Charge Current	100.0A
Voltage at end of Charge	84.0V
Voltage at end of Discharge	57.5V
Standard Discharge Current	25.0A @25℃
Max Continuous Discharge Current	350.0A@30s
AC Internal Resistance	≤30mΩ	Between the positiveand negative poles of the discharge port
SOC Recommended Application Scope	5%~95%
Pack Size（LWH）	805343269mm	Include fixed fleet
Net Weight	73kg	without package
Shell Materia	Plastic sprayed metal black
Waterproof IP Level	IP67
Charging Safety Temperature	-5-55℃
Discharging Safety Temperature	-20-55℃
Cycle Life	5000cycles @DOD80%
Storage Temperature	20±5℃	-20~25℃12month
		-20~40℃3month
		-20~60℃1month
Storage Humidity	65±20%RH	Recommendation
