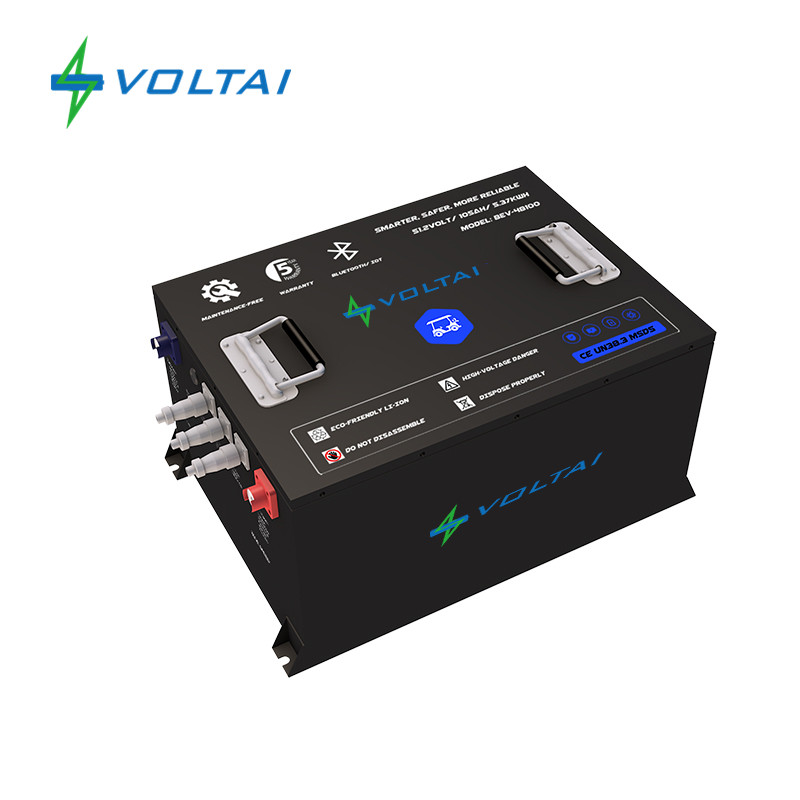

48V 105Ah Lithium Battery For EZ-GO Golf Cart
| Item | Parameter | Remarks |
| Cells Qty | 23S2P | |
| Cell Material | LiFePO4 | |
| Nominal Voltage | 72V DC | Real51.2VDC |
| Nominal Capacity | 100-105.0Ah | 0.5C Standard chargeand discharge |
| Standard Charge Current | 25.0A@25℃ | |
| Max Charge Current | 100.0A | |
| Voltage at end of Charge | 84.0V | |
| Voltage at end of Discharge | 57.5V | |
| Standard Discharge Current | 25.0A @25℃ | |
| Max Continuous Discharge Current | 350.0A@30s | |
| AC Internal Resistance | ≤30mΩ | Between the positiveand negative poles of the discharge port |
| SOC Recommended Application Scope | 5%~95% | |
| Pack Size（L*W*H） | 805*343*269mm | Include fixed fleet |
| Net Weight | 73kg | without package |
| Shell Materia | Plastic sprayed metal black | |
| Waterproof IP Level | IP67 | |
| Charging Safety Temperature | -5-55℃ | |
| Discharging Safety Temperature | -20-55℃ | |
| Cycle Life | 5000cycles @DOD80% | |
| Storage Temperature | 20±5℃ | -20~25℃12month |
| -20~40℃3month | ||
| -20~60℃1month | ||
| Storage Humidity | 65±20%RH | Recommendation |
