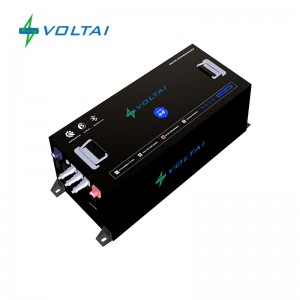

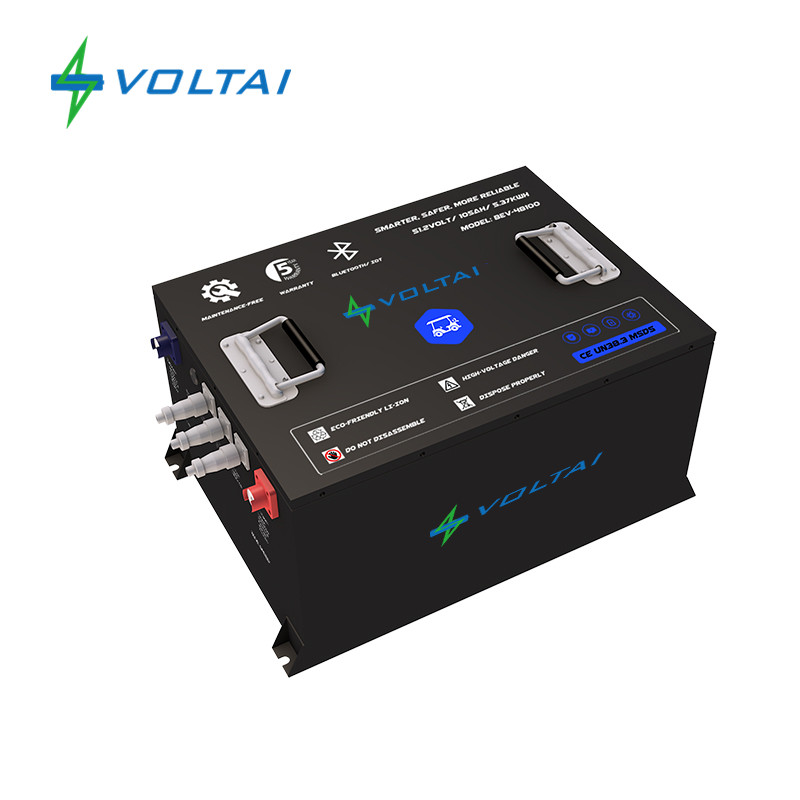

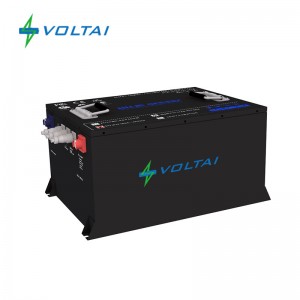

48V 100Ah Lifepo4 Golf Cart Battery

The Lithium golf cart battery system developed by the company is mainly composed of the lithium battery pack and the battery management system (BMS). It is also equipped with the 3.5-inch color monitoring LED touch screen and an Internet of Things (IoT) communication module. The lithium battery can be monitored and managed through PC and mobile phone clients.

Send email to us Video Download

Product Detail

Product Tags

海报(缩)

Item	Parameter	Remarks
Cells Qty	16S2P
Cell Material	LiFePO4
Nominal Voltage	48.0V-512VDC	Real51.2VDC
Nominal Capacity	100-105.0Ah	0.5C Standard chargeand discharge
Standard Charge Current	25.0A@25℃
Max Charge Current	100.0A
Voltage at end of Charge	46.5V
Voltage at end of Discharge	40.5V
Standard Discharge Current	100.0A
Max Continuous Discharge Current	350.0A@30s
AC Internal Resistance	≤30mΩ	Between the positiveand negative poles of the discharge port
SOC Recommended Application Scope	5%~95%

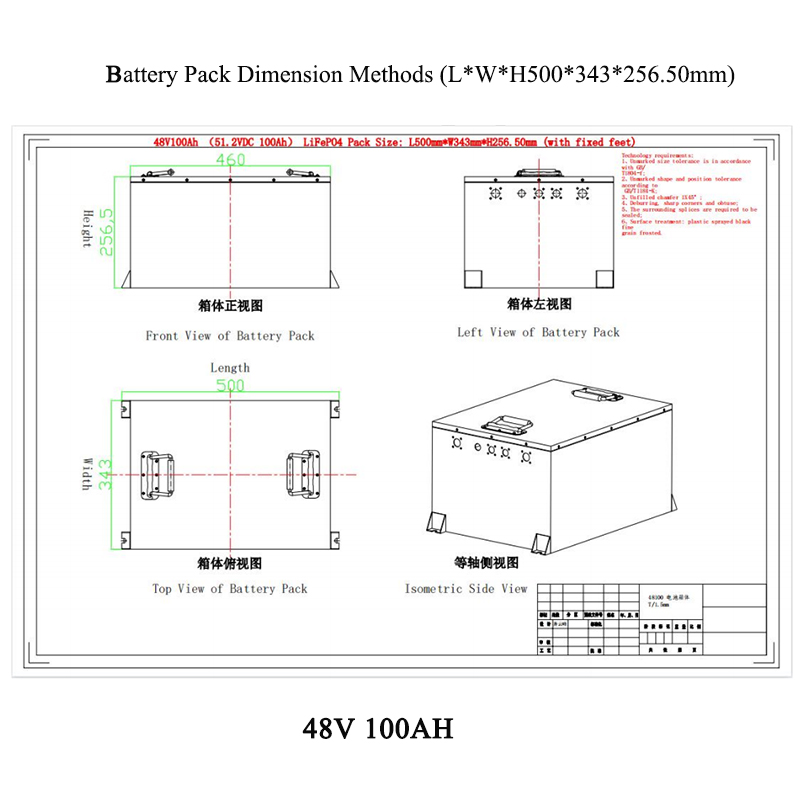

Pack Size（LWH）	500343256.50mm	Include fixed fleet
Net Weight	39.9kg	without package
Shell Materia	Plastic sprayed metal black
Waterproof IP Level	IP67
Charging Safety Temperature	-5-55℃
Discharging Safety Temperature	-20-55℃
Cycle Life	5000cycles @DOD80%
Storage Temperature	20±5℃	-20~25℃12month
		-20~40℃3month
		-20~60℃1month
Storage Humidity	65±20%RH	Recommendation
